1-Pack Pre-soldered Fat Bat Toggle Switch OnBoard DPDT 3 Position Series/Split/Parallel Easy Install

Upgrade Your Guitar's Tone: 3-Position Fat Bat Toggle Switch (ON/ON/ON) for Humbucker Wiring (1/3/5-Pack Options)Unlock the full sonic potential of your humbuckers! This professional-grade Red Fat Bat Toggle Switch provides effortless Series/Split/Parallel switching for two pickups simultaneously. Choose the value pack that fits your project (1, 3, or 5 switches). Engineered for Easy Installation, each switch comes pre-soldered on a circuit board with clear solder indicators, eliminating complex wiring hassles. Simply connect your pickups to achieve three distinct tones: warm and powerful series mode, bright and articulate split single-coil mode, and the balanced clarity of parallel mode. Rated at 250V/3A, this durable self-locking switch fits standard 15/32" (12mm) panel holes and includes all necessary hardware per switch (2 nuts, 1 flat washer, 1 lockwasher). Perfect for guitar mods to expand your humbucker's versatility instantly!Key Specifications:Switch Type: 12-Terminal, 3-Position ON/ON/ON ToggleActuator: Fat Bat HandleOperation: Self-Locking (Latching)Electrical Rating: 250V AC, 3AMounting Hole Size: 15/32 inch / 12mmColor: RedPackage Options: 1-Pack, 3-Pack, or 5-PackIncluded Per Switch: 1x Switch with Pre-Soldered Board, 2 Nuts, 1 Flat Washer, 1 Lockwasher

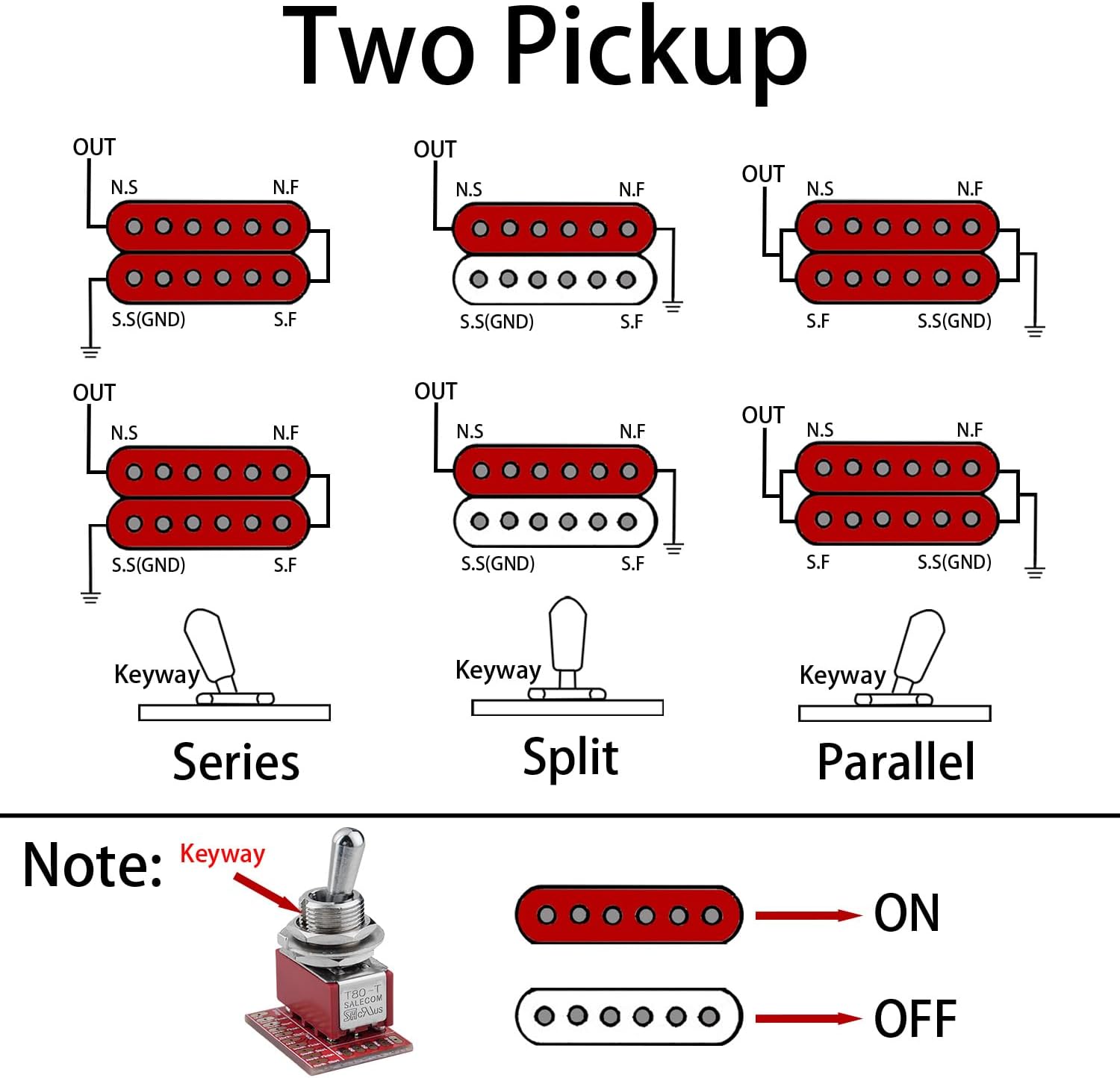

• 3-Position Humbuckers Control: Instantly switch between Series (full, powerful), Split (single-coil brightness), and Parallel (clear, balanced) modes for two humbuckers simultaneously with this ON/ON/ON toggle switch.

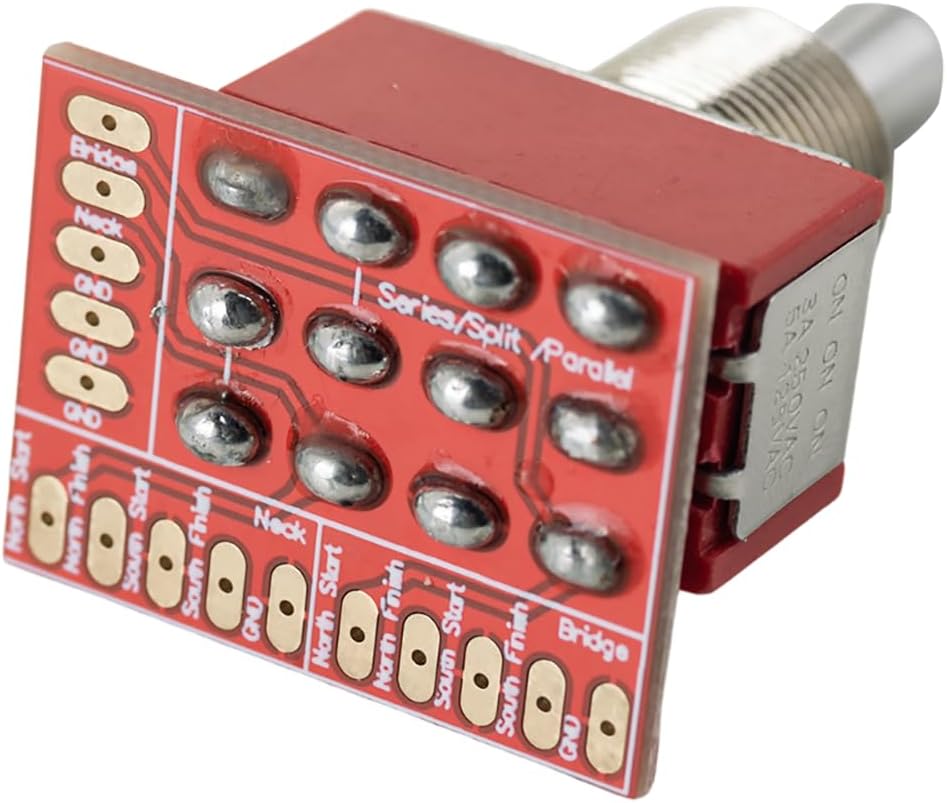

• Easy Installation Guaranteed: Features a pre-soldered circuit board with clear solder indicators per switch, drastically simplifying the wiring process compared to standard switches. Connect your pickups quickly and correctly.
• Universal Humbucker Compatibility: Designed specifically for any standard humbucker pickup, making it the ideal upgrade to significantly expand your guitar's tonal versatility without changing pickups.
• Professional Quality & Durability: Built with a robust self-locking mechanism and rated for 250V/3A, ensuring reliable performance and long-lasting operation in your guitar.
• Complete Kit & Flexible Quantity: Includes everything needed per switch: 1x Switch with Pre-Soldered Board, 2 Nuts, 1 Flat Washer, 1 Lockwasher. Easily installs into standard 12mm (15/32") guitar control panel holes. Choose from convenient 1-Pack, 3-Pack, or 5-Pack options.
